type Class Reference

Represent VHDL types. More...

#include <type.h>

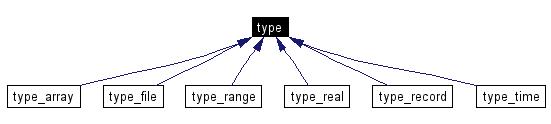

Inheritance diagram for type:


Public Member Functions
	type (void)
void *	operator new (unsigned int num_bytes)
void *	operator new (unsigned int num_bytes, pool *mem_pool)
void	operator delete (void *addr)
const uint	get_width (void)
void	set_width (uint w)
virtual const uint	get_ty_kind (void)
virtual void	set_unit (uint unit)
virtual uint	get_unit (void)
virtual void	set_lhs (int l)
virtual const int	get_lhs (void)
virtual void	set_rhs (int r)
const int	get_rhs (void)
virtual void	set_dir (uint dir)
virtual const uint	get_dir (void)
virtual void	set_range (int l, int r, uint dir)
virtual void	set_box (void)
virtual void	unset_box (void)
virtual const Boolean	is_box (void)
virtual const uchar	get_num_dims (void)
virtual void	set_num_dims (uint ndim)
virtual const uint	get_array_size (void)
virtual void	set_array_size (uint s)
virtual const pTypeRange	get_array_range (void)
virtual void	set_array_range (pTypeRange r)
virtual const pType	get_array_base_type (void)
virtual void	set_array_base_type (pType tBase)
virtual void	dealloc ()
virtual const uint	get_rec_size (void)
virtual void	put_rec_size (uint s)
virtual pSym	find_elem (STRING name)
virtual void	add_elem (pSym sym)
virtual const pType	get_file_base_type (void)
virtual void	set_file_base_type (pType tBase)
Private Attributes
uint	width
	if its an array, this width is the elem width

Detailed Description

Represent VHDL types.

VHDL types come in two forms: named and unnamed. A named type has the form


       type short_range is range 0..15;

Named types are entered into the symbol table like any other type.

An unnamed type is created in a variable declartion. For example,


       variable short_val : array short_range of BIT;

A named type is simply a symbol that points to an unnamed type. Unnamed types are stored in an unnamed type pool. Variables that share the same named type (e.g., INTEGER or NATURAL) will point to the same type in the type pool. It should also be possible for two variables, declared with the same nunamed type to share the same type, but this is not done currently. For example, the declarations for high_word and low_word could share the same type.


      variable high_word : array (0 to 31) of BIT;
      variable low_word  : array (0 to 31) of BIT;

Memory Allocation

New for symbols is only called from the symbol table. New for types is only called from the type table. If new compilers are not available, this localized code will have to be modified.

Definition at line 70 of file type.h.

Constructor & Destructor Documentation

type::type ( void ) [inline]

Definition at line 76 of file type.h.
References width.

00077 { 00078 width = 0; 00079 }

Member Function Documentation

virtual void type::add_elem ( pSym sym ) [inline, virtual]

Reimplemented in type_record.
Definition at line 243 of file type.h.
References FALSE.

00244 { 00245 assert( FALSE ); 00246 }

virtual void type::dealloc ( void ) [inline, virtual]

Reimplemented in type_record.
Definition at line 223 of file type.h.
References FALSE.

00224 { 00225 assert( FALSE ); 00226 }

virtual pSym type::find_elem ( STRING name ) [inline, virtual]

Reimplemented in type_record.
Definition at line 238 of file type.h.
References FALSE, and NULL.

00239 { 00240 assert( FALSE ); 00241 return NULL; 00242 }

virtual const pType type::get_array_base_type ( void ) [inline, virtual]

Reimplemented in type_array.
Definition at line 211 of file type.h.
References FALSE, and NULL.

00212 { 00213 assert( FALSE ); 00214 return NULL; 00215 }

virtual const pTypeRange type::get_array_range ( void ) [inline, virtual]

Reimplemented in type_array.
Definition at line 202 of file type.h.
References FALSE, and NULL.

00203 { 00204 assert( FALSE ); 00205 return NULL; 00206 }

virtual const uint type::get_array_size ( void ) [inline, virtual]

Reimplemented in type_array.
Definition at line 193 of file type.h.
References FALSE, and uint.

00194 { 00195 assert( FALSE ); 00196 return 0; 00197 }

virtual const uint type::get_dir ( void ) [inline, virtual]

Reimplemented in type_range.
Definition at line 157 of file type.h.
References FALSE, and uint.

00158 { 00159 assert( FALSE ); 00160 return 0; 00161 }

virtual const pType type::get_file_base_type ( void ) [inline, virtual]

Reimplemented in type_file.
Definition at line 250 of file type.h.
References FALSE, and NULL.

00251 { 00252 assert( FALSE ); 00253 return NULL; 00254 } // get_base_type

virtual const int type::get_lhs ( void ) [inline, virtual]

Reimplemented in type_range.
Definition at line 137 of file type.h.
References FALSE.

00138 { 00139 assert( FALSE ); 00140 return 0; 00141 }

virtual const uchar type::get_num_dims ( void ) [inline, virtual]

Reimplemented in type_array.
Definition at line 184 of file type.h.
References FALSE, and uchar.

00185 { 00186 assert( FALSE ); 00187 return 0; 00188 }

virtual const uint type::get_rec_size ( void ) [inline, virtual]

Reimplemented in type_record.
Definition at line 228 of file type.h.
References FALSE, and uint.

00229 { 00230 assert( FALSE ); 00231 return 0; 00232 }

const int type::get_rhs ( void ) [inline]

Reimplemented in type_range.
Definition at line 147 of file type.h.
References FALSE.

00148 { 00149 assert( FALSE ); 00150 return 0; 00151 }

virtual const uint type::get_ty_kind ( void ) [inline, virtual]

Reimplemented in type_time, type_range, type_real, type_array, type_record, and type_file.
Definition at line 112 of file type.h.
References bad_type, and uint.

00113 { 00114 return bad_type; 00115 }

virtual uint type::get_unit ( void ) [inline, virtual]

Reimplemented in type_time.
Definition at line 125 of file type.h.
References FALSE, and uint.

00126 { 00127 assert( FALSE ); 00128 return 0; 00129 }

const uint type::get_width ( void ) [inline]

Definition at line 99 of file type.h.
References uint, and width.

00100 { 00101 return width; 00102 } // get_width

virtual const Boolean type::is_box ( void ) [inline, virtual]

Reimplemented in type_range.
Definition at line 176 of file type.h.
References Boolean, and FALSE.

00177 { 00178 assert( FALSE ); 00179 return FALSE; 00180 }

void type::operator delete ( void * addr ) [inline]

Definition at line 97 of file type.h.

00097 {/* do nothing */}

void* type::operator new ( unsigned int num_bytes,

pool * mem_pool

) [inline]

Definition at line 90 of file type.h.
References pool::GetMem().

00091 { 00092 return mem_pool->GetMem( num_bytes ); 00093 }

void* type::operator new ( unsigned int num_bytes ) [inline]

Definition at line 84 of file type.h.
References FALSE, and NULL.

00085 { 00086 assert( FALSE ); 00087 return NULL; 00088 }

virtual void type::put_rec_size ( uint s ) [inline, virtual]

Reimplemented in type_record.
Definition at line 233 of file type.h.
References FALSE.

00234 { 00235 assert( FALSE ); 00236 }

virtual void type::set_array_base_type ( pType tBase ) [inline, virtual]

Reimplemented in type_array.
Definition at line 216 of file type.h.
References FALSE.

00217 { 00218 assert( FALSE ); 00219 }

virtual void type::set_array_range ( pTypeRange r ) [inline, virtual]

Reimplemented in type_array.
Definition at line 207 of file type.h.
References FALSE.

00208 { 00209 assert( FALSE ); 00210 }

virtual void type::set_array_size ( uint s ) [inline, virtual]

Definition at line 198 of file type.h.
References FALSE.

00199 { 00200 assert( FALSE ); 00201 }

virtual void type::set_box ( void ) [inline, virtual]

Reimplemented in type_range.
Definition at line 168 of file type.h.
References FALSE.

00169 { 00170 assert( FALSE ); 00171 }

virtual void type::set_dir ( uint dir ) [inline, virtual]

Reimplemented in type_range.
Definition at line 153 of file type.h.
References FALSE.

00154 { 00155 assert( FALSE ); 00156 }

virtual void type::set_file_base_type ( pType tBase ) [inline, virtual]

Reimplemented in type_file.
Definition at line 255 of file type.h.
References FALSE.

00256 { 00257 assert( FALSE ); 00258 } // set_base_type

virtual void type::set_lhs ( int l ) [inline, virtual]

Reimplemented in type_range.
Definition at line 133 of file type.h.
References FALSE.

00134 { 00135 assert( FALSE ); 00136 }

virtual void type::set_num_dims ( uint ndim ) [inline, virtual]

Reimplemented in type_array.
Definition at line 189 of file type.h.
References FALSE.

00190 { 00191 assert( FALSE ); 00192 }

virtual void type::set_range ( int l,

int r,

uint dir

) [inline, virtual]

Reimplemented in type_range.
Definition at line 163 of file type.h.
References FALSE.

00164 { 00165 assert( FALSE ); 00166 }

virtual void type::set_rhs ( int r ) [inline, virtual]

Reimplemented in type_range.
Definition at line 143 of file type.h.
References FALSE.

00144 { 00145 assert( FALSE ); 00146 }

virtual void type::set_unit ( uint unit ) [inline, virtual]

Reimplemented in type_time.
Definition at line 121 of file type.h.
References FALSE.

00122 { 00123 assert( FALSE ); 00124 }

void type::set_width ( uint w ) [inline]

Definition at line 104 of file type.h.
References width.

00105 { 00106 width = w; 00107 } // set_width

virtual void type::unset_box ( void ) [inline, virtual]

Reimplemented in type_range.
Definition at line 172 of file type.h.
References FALSE.

00173 { 00174 assert( FALSE ); 00175 }

Member Data Documentation

uint type::width [private]

if its an array, this width is the elem width

Definition at line 73 of file type.h.
Referenced by get_width(), set_width(), and type().

The documentation for this class was generated from the following file:

type.h
